Sport Fields
Welded double bar panels and posts.
Advantages
Safe and sturdy

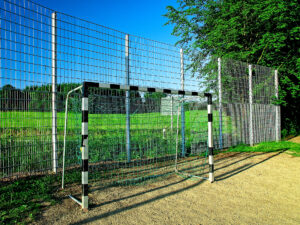

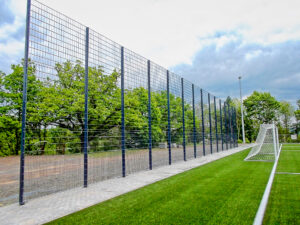

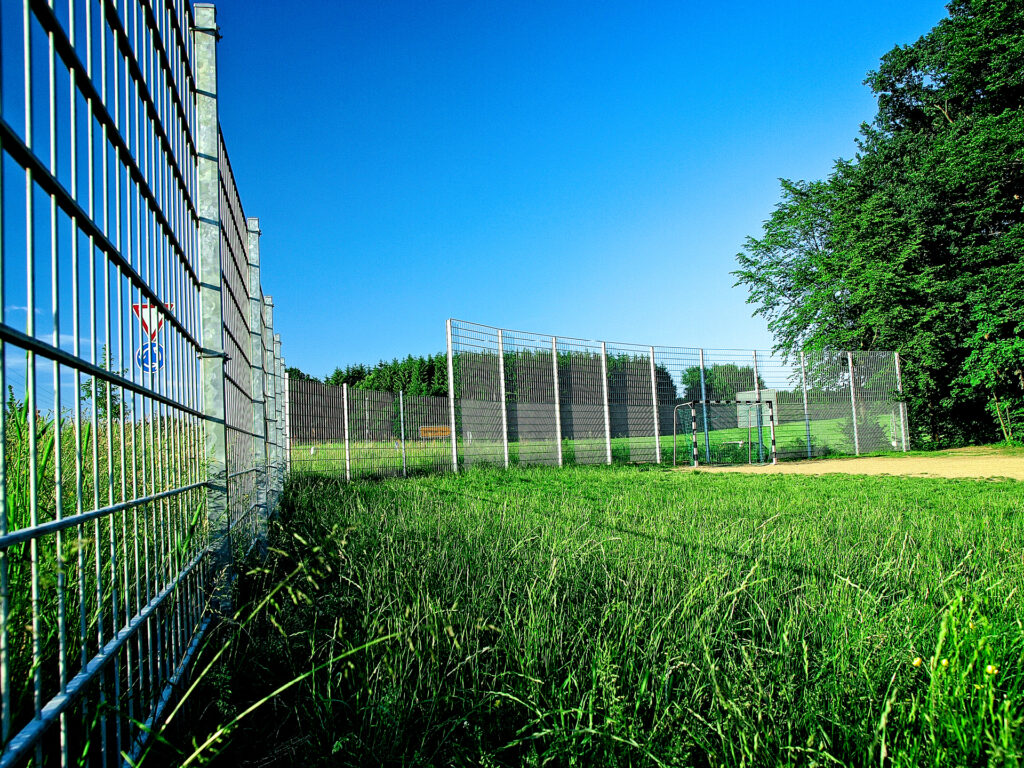

Our fence system for sport areas, schools and public spaces is a good and proffessional fence solution, offering a sturdy and secure solution around the sport field.
Heavy construction
Heavy welded mesh panels with double horizontal wires and single vertical wires in HDG steel alternatively HDG + PVC coating (RAL 6005, RAL 9005). Posts with cover plates and noice reduction connector. Standard system heights: 3 m, 4 m, 5 m and 6 m
A combination with panels up to 2, 3 or 4 m, plus plastic net up to full fencing height can be offered.
Technical description
Double bar panels type 8/6/8
Horizontal wires: 2×8 mm
Vertical wires: 6 mm
Mesh size: 50×200 mm
Panel heights: 1030 mm, 2030 mm
Width: 2500 mm
Posts

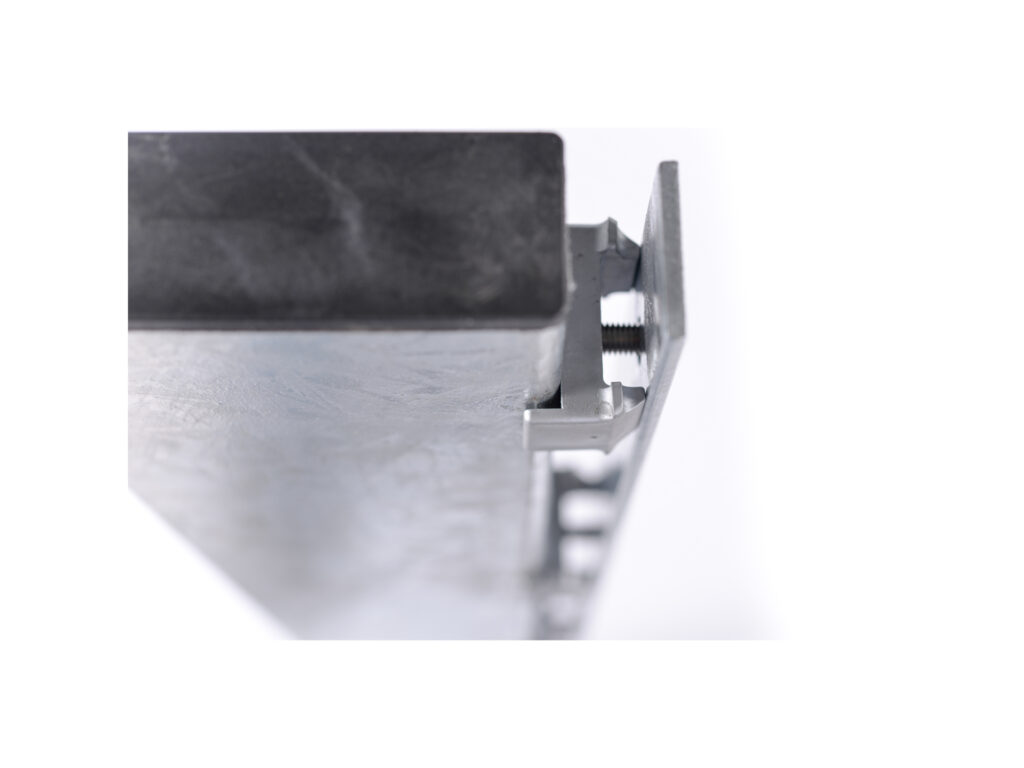

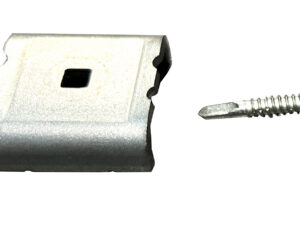

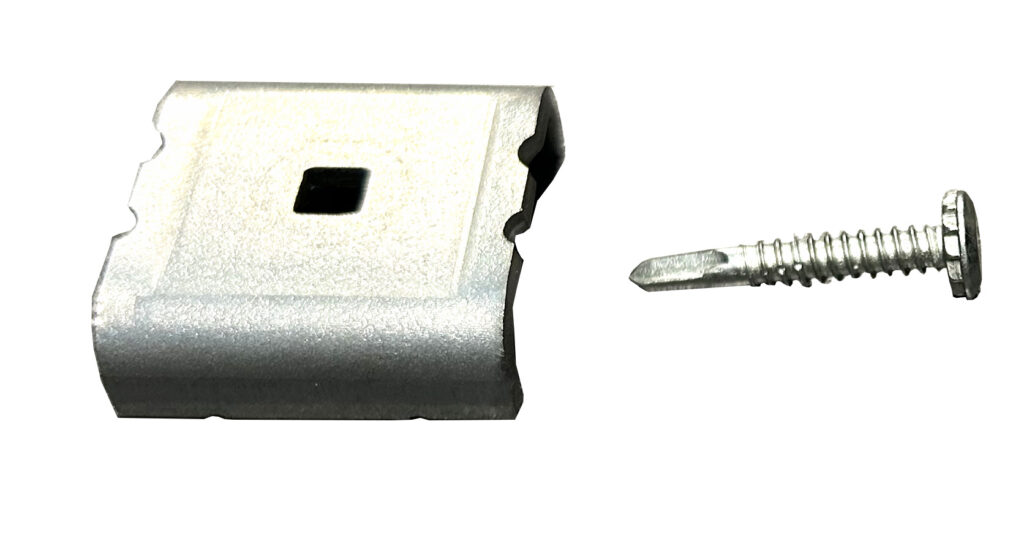

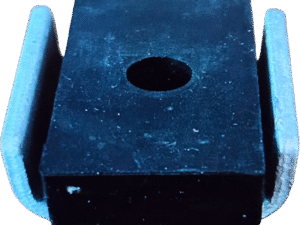

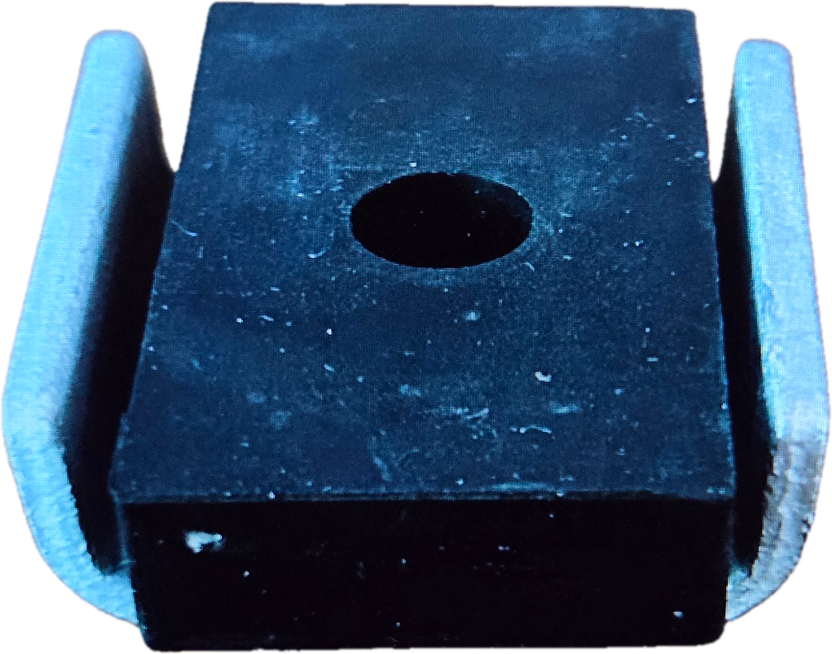

Posts in HDG alt. HDG + PVC coating (RAL 6005, RAL 9005). The panels are fixed to the posts with full height cover plates for optimal quality. The posts are equipped with noice reduction connector.
| System height | Post section |
| 3 m | 80x40x2x3800 mm |
| 4 m | 80x40x3x4800 mm alternatively 100x40x3x4 800 mm |
| 5 m | 100x40x3x6000 mm |
| 6 m | 120x40x3x7000 mm |
Gates
The system also include single or double swing gates in HDG alt. HDG + PVC coating for accessing the sport field.
Options
- Other RAL colors on request
- Other mesh sizes on request
- Posts with foot plate
- Other system heights
