Magni

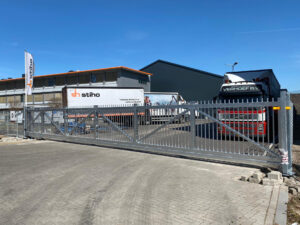

Cantilever sliding gate for industrial applications with large opening requirements.
Construction
The wing
The Magni cantilever sliding gate has been developed for the Nordic climate. It is a fully welded construction with an underbeam made of specific C-profile (143x136x6mm). The welded gate frame consists of a square or rectangular horizontal tube and vertical square tubes (30×30 mm). The infill consists of welded vertical square tubes with a maximum distance between the bars of 100 mm. Prepared for 3 lines of barbed wire as an option.
The guide post and end post
The standard double-sided end post is made of square tubes and is equipped with a catcher and base to guide and support the wing when the gate is closed.
Guide post for automatic gates is equipped with powder coated steel cabinet (full height) to protect all electric connections and electronic devices.
Guide roller sets and guide rollers
The wing is supported and guided by 2 roller sets with ball bearings under the beam. One roller set is mounted on the base plate of the guide post and the second independent roller set is installed at the rear end of the foundation. Both roller sets support the underbeam in order to guarantee perfect guiding of the gate wing.
Lateral guiding of the wing is done by 2 horizontal guide rollers with ball bearings; guide on the top of the guide post.
All rollers are made of high quality polyamide PA66. The material guarantees longevity and silent running of the gate wing.
Coating
Posts and wing are hot dip galvanised or additionally powder coated. The standard colors are RAL 9007, RAL 9005, RAL 6005. Other colours are available on request.
For automatic versions, the cabinet for electronic devices is powder coated in standard colour RAL 9007.
Hot dip galvanised according to EN-ISO 1461.
Posts and wing can be polyester powder coated as an option.
Thickness of powder coating: between 60 μm and 80 μm.
Mode of operation
Motorised with Halsang SLEIPNER control, incl frequency modulator with soft start and stop for optimal operation. Fully pre-assembled when delivered, allowing an easy and fast installation on site.
Steering and electronics installed in a full height cabinet. TüF approved and in accordance with EN 13241-1.
For manual versions, the gates are equipped with a special lock for sliding gates made by Locinox, or prepared for a padlock.
Features
- Completely welded reinforced steel construction in HDG version
- Square tube infill as standard 30x30x2mm
- Easy access to the cabinet (coated in RAL 9007) for service and maintenance
- Extra external support roller supporting the wing in open position
- Max standard opening width 16 m
- Standard height 2.0 m and 2.4 m
- TÜV approved and in accordance with EN 13241-1
- Other dimensions on request
Technical description
Power supply voltage
230V AC, 50 Hz
Power consumption
1000 W
Current
10A
Feedback signal Potential free contact
– no/nc
Opening signal Signal
(max. 1 sec)
Operation environment
-25o to +50o C
Underbeam
143x136x6 mm
Guide/end post
100x100x3 mm
Gate frame
120x120x3 mm
Options
- Overclimbing protection – toothed strip on top of the leaf
- Halsang Monitoring system
- Fencing connection mounted on gate posts
- Inductive loop detector
- Powder coated in RAL paint colours.
- Special infill upon request
- Key switch
- Traffic light
- Illumination of free passage
- Others
